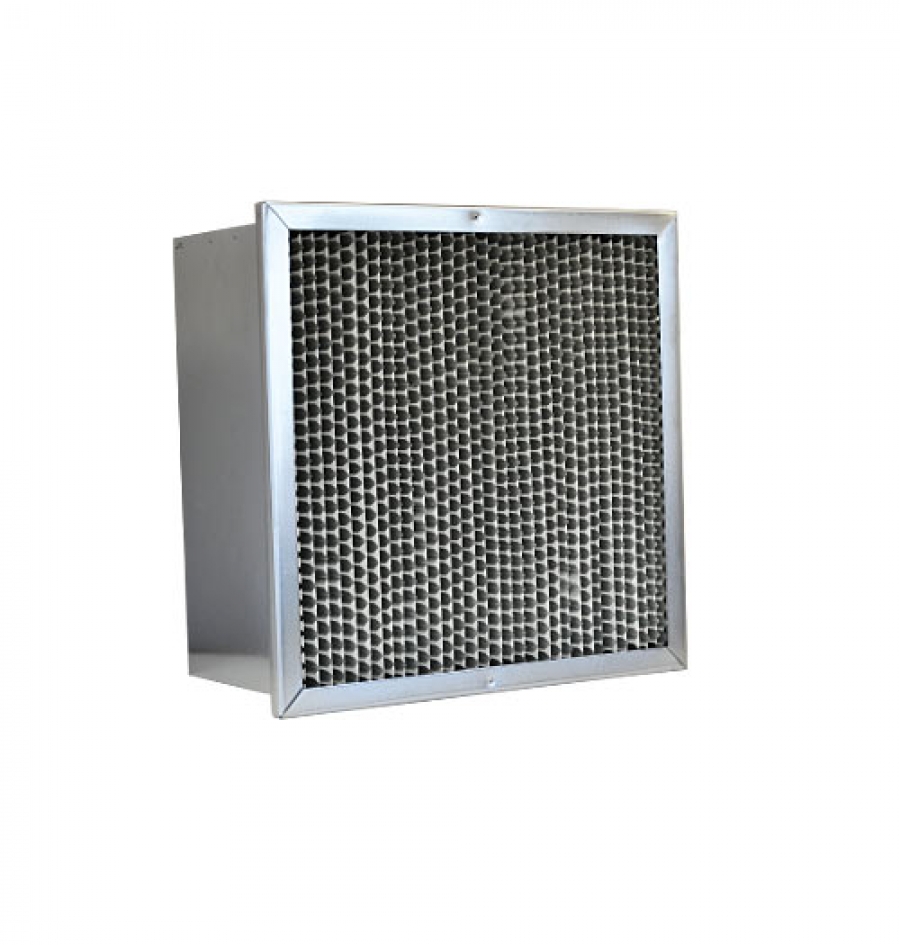

Supracell

Supracell
  • Particle board or 24 gauge galvanized steel frame
  • Micro-fiberglass media pleated and seperated by courrugated aluminum sheet
  • Generally used in side or front acces housing as a second stage filtration
  • Available in standard and custom sizes in 6" and 12" depths with or without header
  • Commercial and industrial applications. Variable air volume units
  • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)

Download attachments:
back to top

Pockets

  • Control-Pack 65% 85% 95%
    Control-Pack 65% 85% 95%
    K2_INFORMATIONSTECHNIQUES
    • 24 gauge galvanized steel frame
    • Two layer of synthetic media ultra-sonic sealed in bag form
    • Generally used in side or front acces housing as a second stage filtration
    • Available in standard and custom sizes with variable depth and quantity of bags
    • Commercial and industrial applications. Constant air volume units
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)

    Download attachments: Control Pack

Rigids

  • Control Flow
    Control Flow
    K2_INFORMATIONSTECHNIQUES
    • 24 gauge galvanized steel frame reinforced with stabilizer in each corner
    • Synthetic double density synthetic media laminated to an expanded wire 95% open
    • Generally used in side or front acces housing as a second stage filtration
    • Available in standard and custom sizes in 6" and 12" depths with or without header
    • Commercial and industrial applications. Variable air volume units
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)



    Download attachments: Control Flow
  • MEGA-PACK
    MEGA-PACK
    K2_INFORMATIONSTECHNIQUES
    • Beverage board diecut or 24 gauge galvanized steel frame
    • Micro-fiberglass media pleated close together. (mini-pleat)
    • Generally used in side or front acces housing as a second stage filtration
    • Available in standard and custom sizes in 2" and 4" depths with or without header
    • Commercial and industrial applications. Variable air volume units
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15)
  • Supracell
    Supracell
    K2_INFORMATIONSTECHNIQUES
    • Particle board or 24 gauge galvanized steel frame
    • Micro-fiberglass media pleated and seperated by courrugated aluminum sheet
    • Generally used in side or front acces housing as a second stage filtration
    • Available in standard and custom sizes in 6" and 12" depths with or without header
    • Commercial and industrial applications. Variable air volume units
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)

    Download attachments: Supercell
  • SUPRACELL NRM & NRM XL
    SUPRACELL NRM & NRM XL
    K2_INFORMATIONSTECHNIQUES



    • Micro-fiberglass media pleated and seperated by courrugated aluminum sheet
    • Used in extreme condition. Resist to very high pressure (15 w.g.)
    • Available in standard and custom sizes in 6" and 12" depths with or without header
    • Heavy industrial applications. Standard and high capacity available
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)
    Download attachments: SUPRACELL NRM & NRM XL
  • Supracell 2V-4V
    Supracell 2V-4V
    K2_INFORMATIONSTECHNIQUES
    • Plastic frame with header
    • Micro-fiberglass media pleated close together 4 or 8 packs disposed in 2V or 4V.
    • Generally used in side or front acces housing as a second stage filtration
    • Available in standard sizes 12" depth
    • Commercial and industrial applications. Variable air volume units
    • Medium to high efficiency, (60-65% MERV 11) - (80-85% MERV 13) -(90-95% MERV 15) (see brochure)
    Download attachments: Supracell-V
